turret punch press machine

The machine of whole structure and characteristics : 1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by RAYMAX, The punching machine is for cutting, punching, blanking, bending and light stretching work. 2. C Type Steel welded frame, high rigidity and less deformation Compact, wide body frame eliminating vibration for improved ide life and machine. 3. Rigid construction guarantees exact die mating, Six side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die. 4. Highly advanced, rigidly supported gears,…

Main Features: * The series punching machine adopt rigid rotated key clutch with simple structure, easy operation and maintenance, helical gear transmission, smooth operation and low impact. * J23-25 open inclinable punching machine, first changed from traditional sliding bearing to ball bearing with higher Wear Resistance, avoid generating big gear noise due to brass faster abrasion. * J23 series open inclinable punching machine is unique in the industry with transmission brass gear. * Redesigned machine body with higher strength, at the same time, completed with ball bearing transmission (small noise). * J23-80 and above tonnage punching machine is in pneumatic…

Product Description 1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance. 2. The sliding block of the cast box structure has good rigidity. 3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage. 4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation. 5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency. Specification Model J23-100A Norminal…

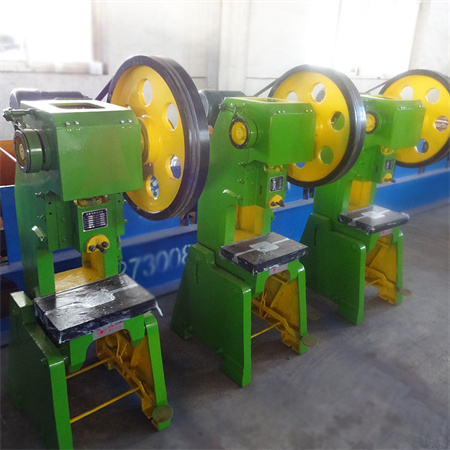

Products Description J23 series punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance. Its throat has certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading and operation are convenient. The punch press is…
