wc67k press brake

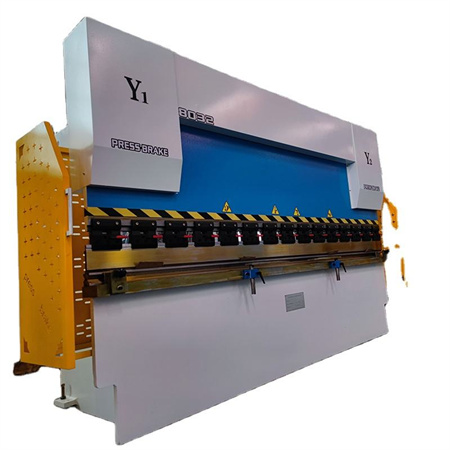

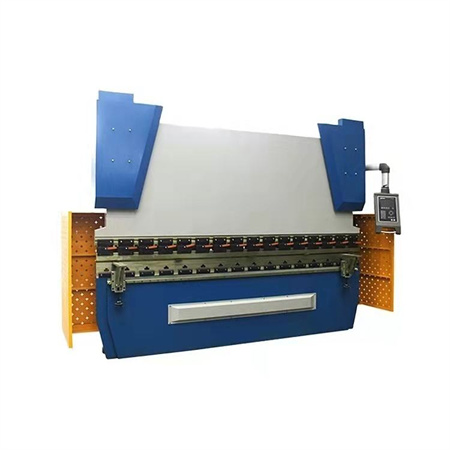

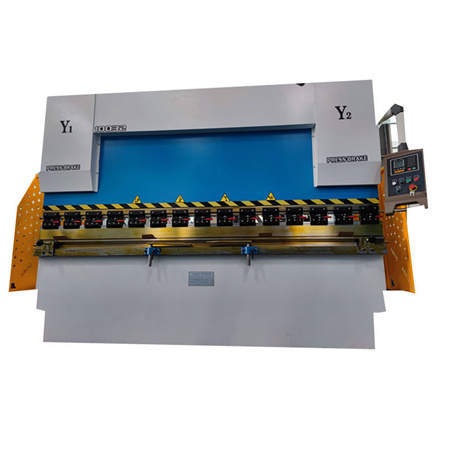

WC67Y CNC Hydraulic Press Brake：1. The Frame is entirely welded with steel plates, and treated to relive stress by tempering, so the precision is well maintained.2. Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from over seas to ensure themachine tool relia bility.3. Mechanical synchronous mechanism and the complex compen-station are designed so as to reise the workpieces precision. (the convex structure for the table above 160T)4. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.5. Inch, single, continuous operation mode…

MAIN FEATURE: 1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment. 2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision. 3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany. 4. Travel limit protection, full machine guarding with safety interlocker. 5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision. 6. The stroke and distance of the back gauge is adjusted by the motor. 7. Inch, single mode…

Product Structure 1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity. 2. Mechanical torque system makes sure the synchronization of cylinders. 3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel. 4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. 5. Easy Install and Use CE approved hydraulic press brake machine Press Brake Manufacturer With Rich Export Experience Professional comes from sincerely…

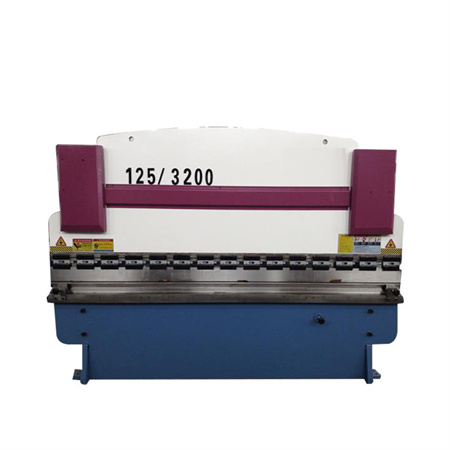

NO. Model Nominal Pressure KN Length of Table mm Distance between Frames mm Open Height mm Throat Depth mm Slide Stroke mm Motor  Power kw 1 WC67Y/K-40T/2500 400 2500 2050 210 200 110 4 2 WC67Y/K-63T/2500 630 2500 2050 235 250 120 5.5 3 WC67Y/K-100T/3200 1000 3200 2500 330 320 150 7.5 4 WC67Y/K-125T/3200 1250 3200 2500 330 320 150 7.5 5 WC67Y/K-160T/3200 1600 3200 2500 400 320 200 11 6 WC67Y/K-200T/3200 2000 3200 2500 435 300 200 15 7 WC67Y/K-200T/4000 2000 4000 3100 435 300 200 15 8 WC67Y/K-200T/6000 2000 6000 4800 435 320 200 15 9 WC67Y/K-250T/3200 2500 3200 2500 435 320 200…
