Steel Plate Angle Cutting Punching Notching Machine Hydraulic Ironworker For Sale

Product Description

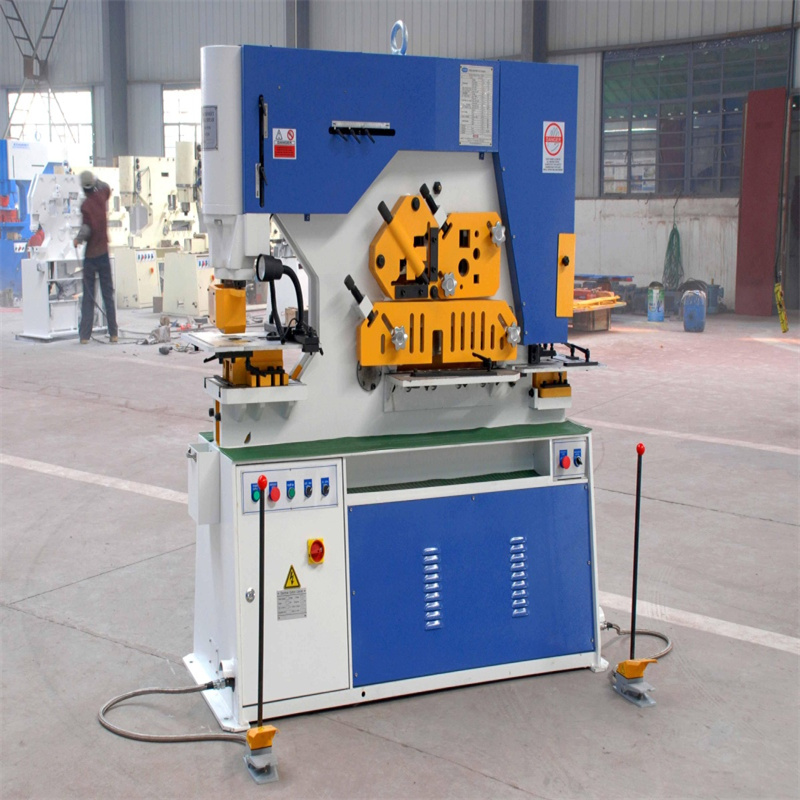

Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System. Hydraulic iron worker can punch, cut, notch and bend for flat bar, square bar, round bar, equal angle, channel. It is the latest product of the punching and shearing machine at home and abroad.

Model	Q35Y-20
Punching Pressure (T)	90T
Max. cutting thickness of sheet plates (mm)	20
Material strength (N/mm²)	≤450
Angle of Shear (°)	8º
Flat bar shearing (T×W)(mm)	20×330 10×480
Max. length of cylinder stroke (mm)	80
Trips frequency (times/min)	12-20
Depth of throat (mm)	355
Punch depth (mm)	20
Max. punching diameter (mm)	30
Motor power (KW)	7.5
Overall dimensions (L×W×H)(mm)	1950×900×1950
Weight (kg)	2400

Direction for use

The machine is mainly used for cutting flat bar, profile, punching hole and notching. It can widely used in Shipyard, Electric, Bridge, Automobile, Hoisting＆Transportation, Metal Construction and other machinery factories etc.

Description of application effect

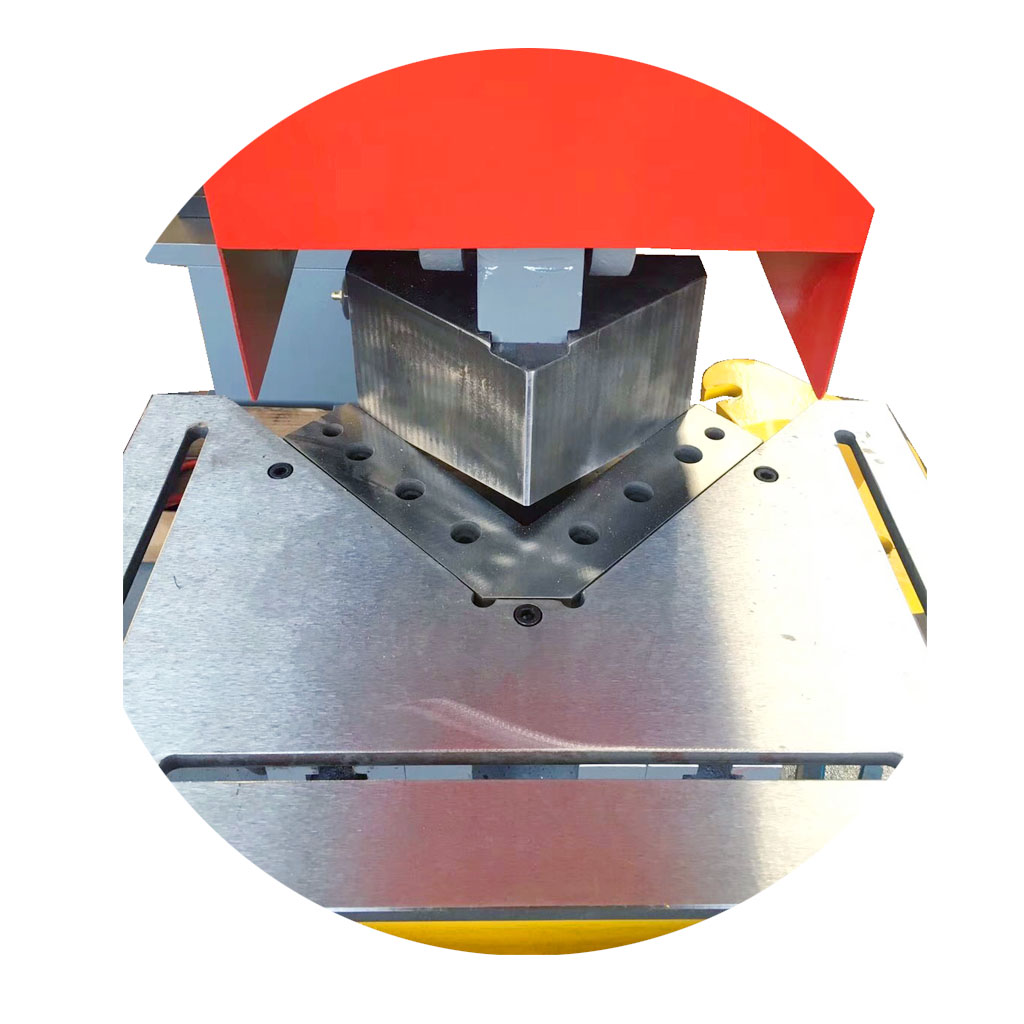

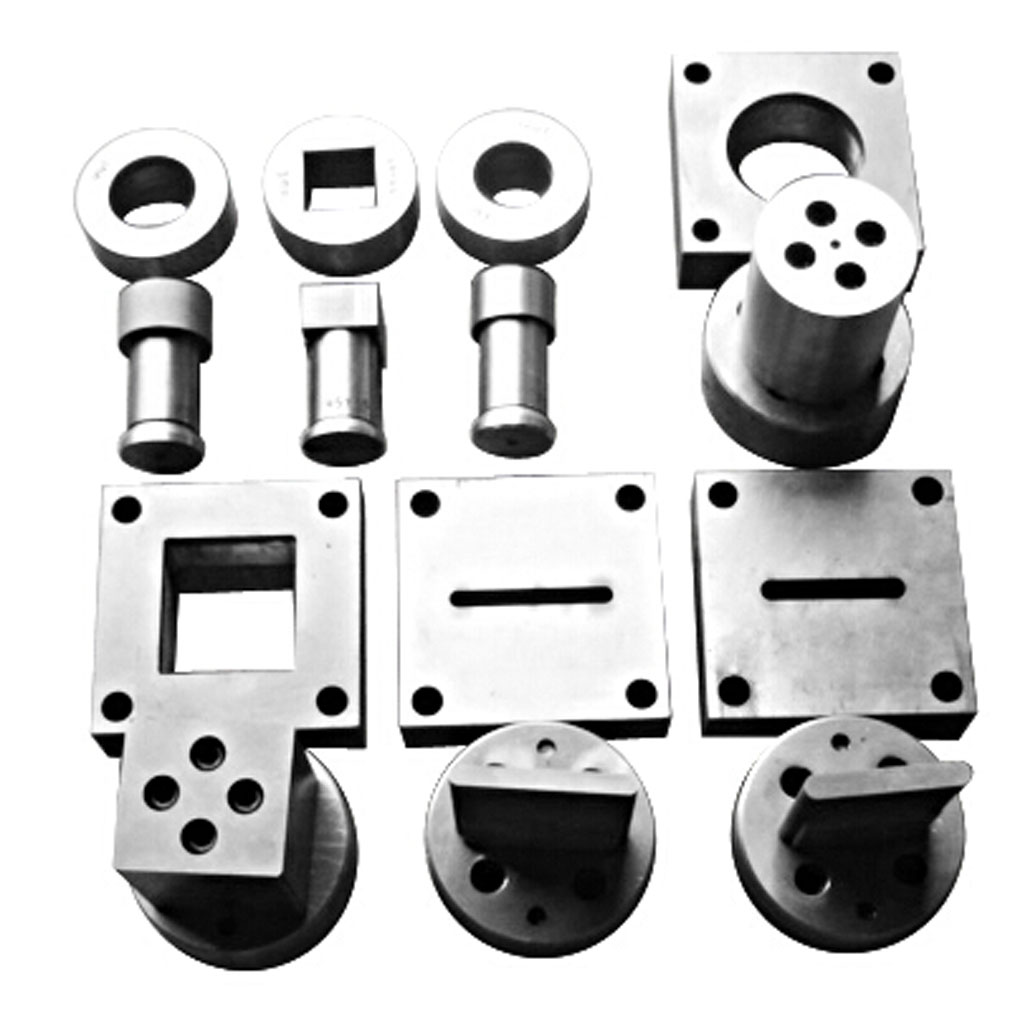

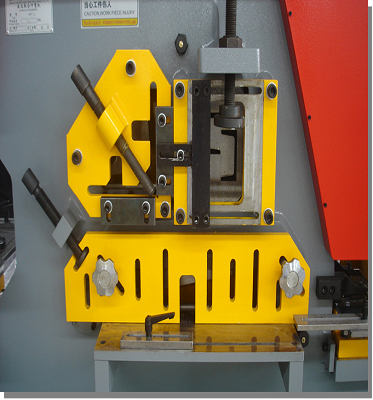

Flat bar cutting, punching hole and notching work can be performed on the machine within the rated specification. With extra equipment, the machine is able to cut, punch and bend in special shape. The machine adopted hydraulic driving system and has a performance and overload protecting device .

Product Paramenters

Profile		Q35Y-20
Round Bar		50
Square Bar		50×50
Equal Angle	90ºShearing	140×140×12
	45ºShearing	70×70×10
T-Bar	90ºShearing	140×140×12
	45ºShearing	70×70×10
I-beam		160×88×6
Channel		160×63×6.5

Details Images

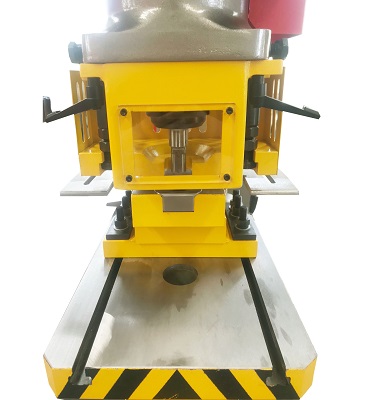

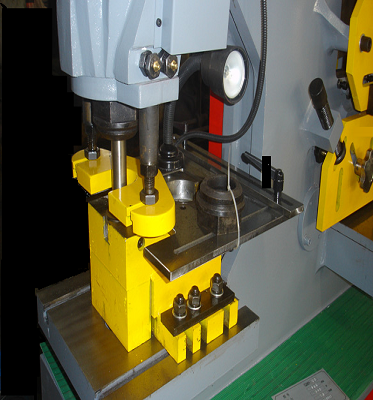

Visual safety protection device: Punching part equipped with a 360 degree visual rotary safety device, Punch more safe . And also have movable feeder

Electric : Main electric is Schneider. Equipped with open door automatic power-off protection device , more safe .

CNC System: CNC control , can automatic pressing material . Automatic control switch , control the backgauge. Multi - station cnc control system.

Automatic Backgauge: Ball screw automatic backgauge device, Scale positioning , automatic cut. Work table multi-angle engraved positioning , can cut high precision, reduce manual measurement .

Temperature control device: Visual pressure gauge. Integral fuel tank and Temperature control fan, can control the oil temperature. Increase working hours, improve work performance.

Details

• CNC or Not: CNC
• Condition: New
• Nominal Force (kN): 900 kN
• Power Source: Hydraulic
• Voltage: 380V/220V Optional
• Dimension(L*W*H): 1950*900*1950
• Weight (T): 2.4
• Key Selling Points: Automatic
• Warranty: 1 Year
• Showroom Location: Egypt, Turkey, India, Mexico, Russia, Kenya, Argentina, UAE, Colombia
• Applicable Industries: Construction works
• Machine Type: Hydraulic Ironworker
• After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Canada, France, Brazil, Australia, Kenya, South Korea, Romania, Ukraine
• Certification: CE ISO
• Function: Punching and notching
• Flat bar shearing: 20*330 10*480
• Application: hole punching and metal forming machine
• Punch depth: 20mm
• Angle shear: 8°
• Max cutting thickness: 20mm
• Slider stroke: 80mm
• Max punching diameter: 30mm
• Weight: 2400kg
• Power(W): 7.5kw
