Wc67k-400T Cnc Plc Manual Sheet Bending Machine Hydraulic Nc Press Brake Machine

Product Overview

Special numeric-control system is fitted with mainframe of the hydraulic press brake machine.

Multi-work-step programming function is able to achieve an automatic operation and continuous positioning of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.

The machine is provided with bend counting function, for a real-time display of processing quantity, power-failure memory of positions stopper and gliding block, as well as procedures and parameters.

Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Performance and Features:

1. The machine body is in an overall welded and overall processed structure , and ANSYS finlte element analysis software is applied to main parts of the machine body for analysis , which has ensured the reliability of machine tool and the precision of entire machine .

2. Closed loop control mode composed of electrohydraulic servo valve imported from Germany and imported grating ruler is adopted for fhe main oil cylinders on both sides, to break through the stroke control patter of traditional bending machines of mechanical stoppe - r type, typical of high feedback precision for position of gliding block, accurate and stable operation , good synchronizing performance and high repeated positioning precision of gliding block .

3. Imported parts are used for all the functional parts in the rear stopper to ensure the stopping precision of rear stopper and the mechanism of rear stopper will multiple stopping shafts for more complete functions is employed up to customer requirements.

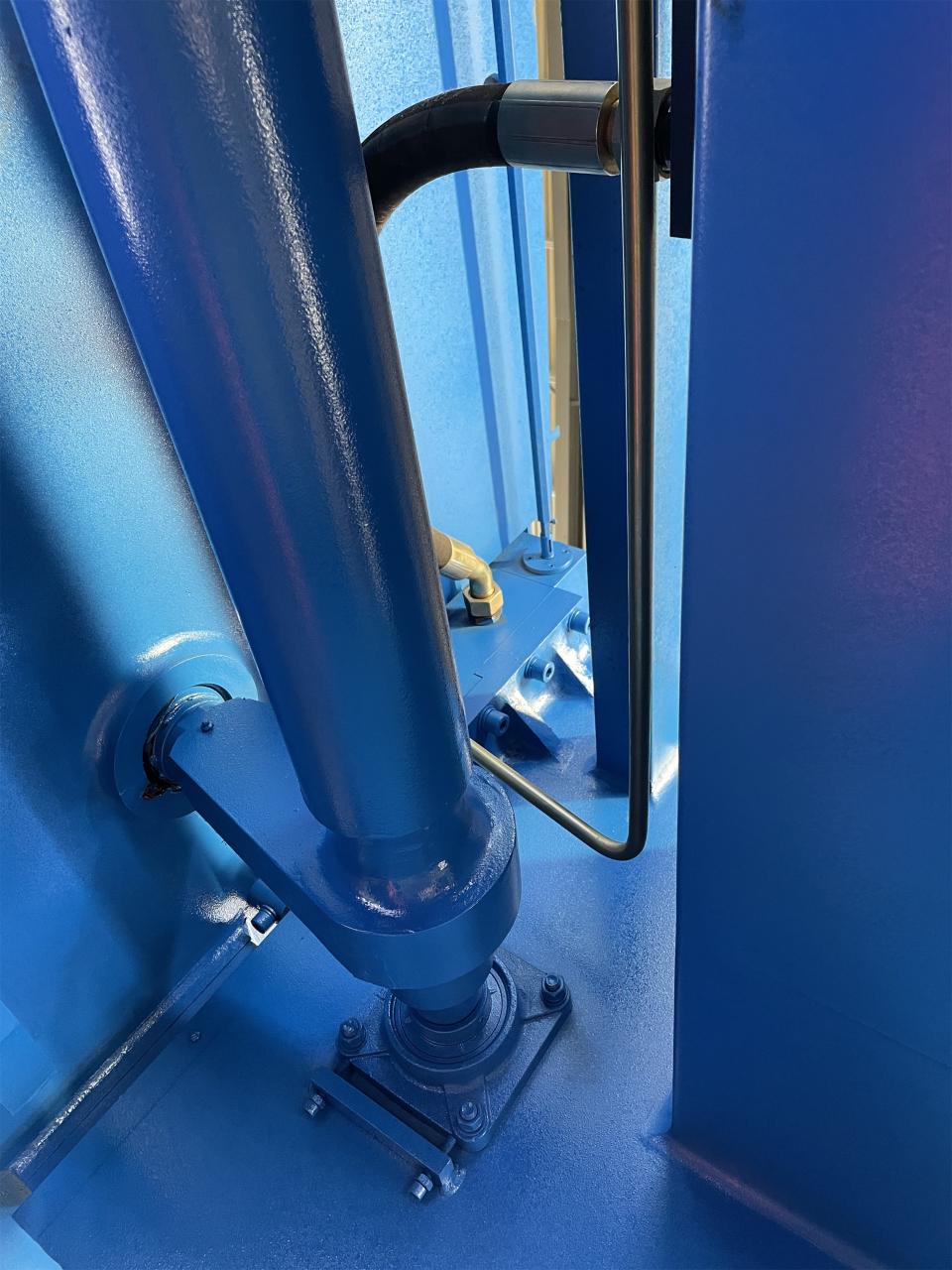

4. Integrated control system imported from Germany is adopted for the whole hydraulic system , to simplify the installation of pipelines, and to ensures stable operation as well as simple and nice appearance of the machine tool .

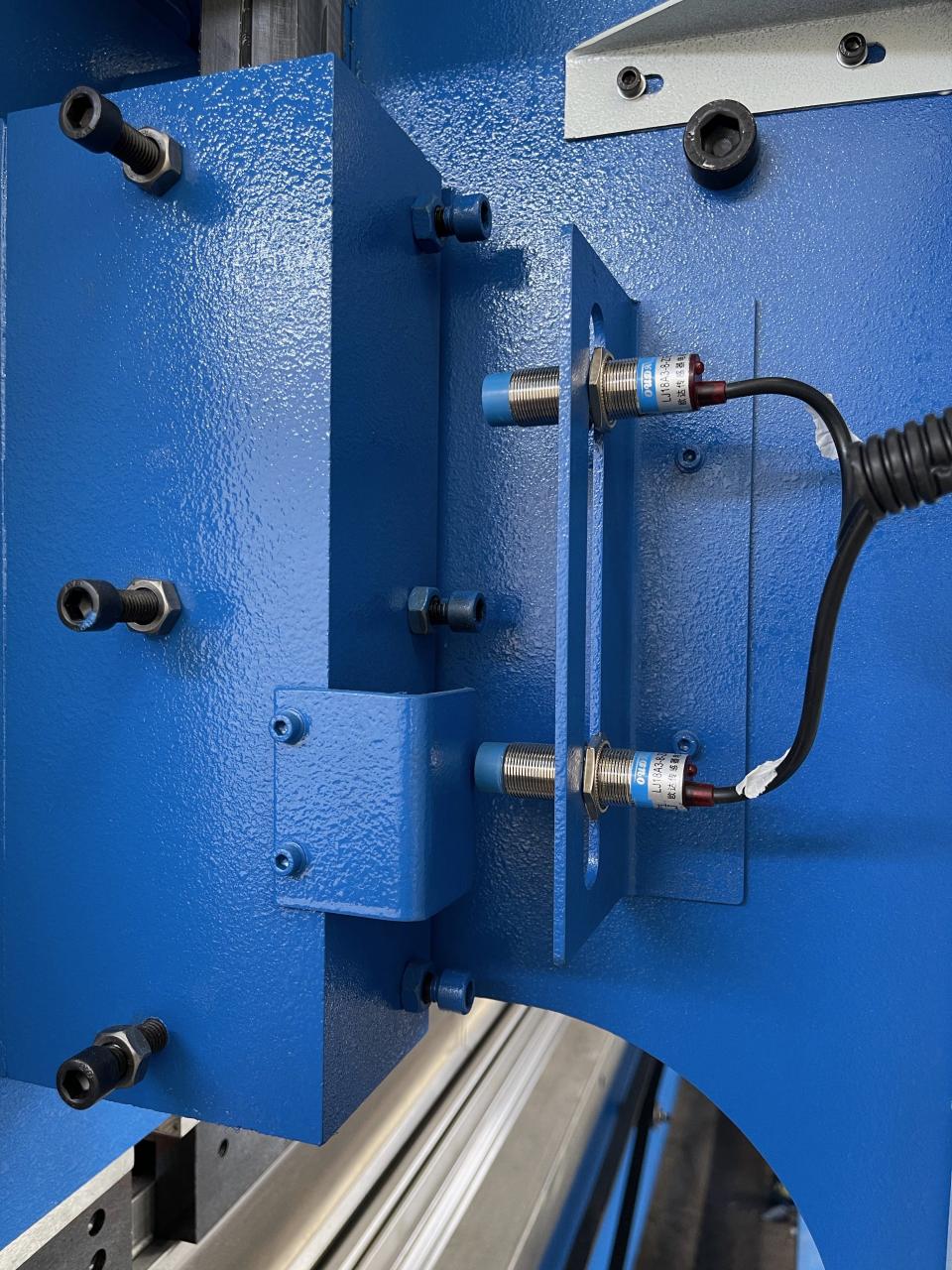

5. C - shaped plates are fitted on both sides of the machine body , and the high precision grating ruler is mounted on the C shaped plates, thus to avoid the influence over pending precision arising from distortion of machine body during bending process.

6. The lower workbench is fitted with automatic compensation mechanism for hydraulic deflection, to achieve an effective dead zone free compensation with high bending precision and Iong stability guaranteed.

The numeric control system refers to the numeric - control system special for electrohydraulc servo bending machines of Italian ESA , Netherland DELEM. or Swiss CYBELEC Companies , able to achieve the functions of graphic programming for bending angle, compensation for angle amendment automatic calculation and adjustment of bending pressure, automatic calculation of compensation for workbench distortion, extending length of workpieces, bending pressure for sole pressing , open distance , and withdrawal of rear stopper, etc .

FEATURES AT A GLANCE

DELEM DA53T Controller feature:

1. 10.1″ high resolution true color TFT display.
2. Up to 4 axis control(Y1,Y2 2 auxiliary axes)
3. Deflection compensation control with mode/material/Product library.
4. Support servo or frequency conversion control.
5. Advanced Y-axis control algorithm can control both closed-loop valve and open-loop valve.
6. Network dual computer linkage(optional).
7. USB peripheral interface.Profile-53tl offline programming software.

Multi V mold (optional)

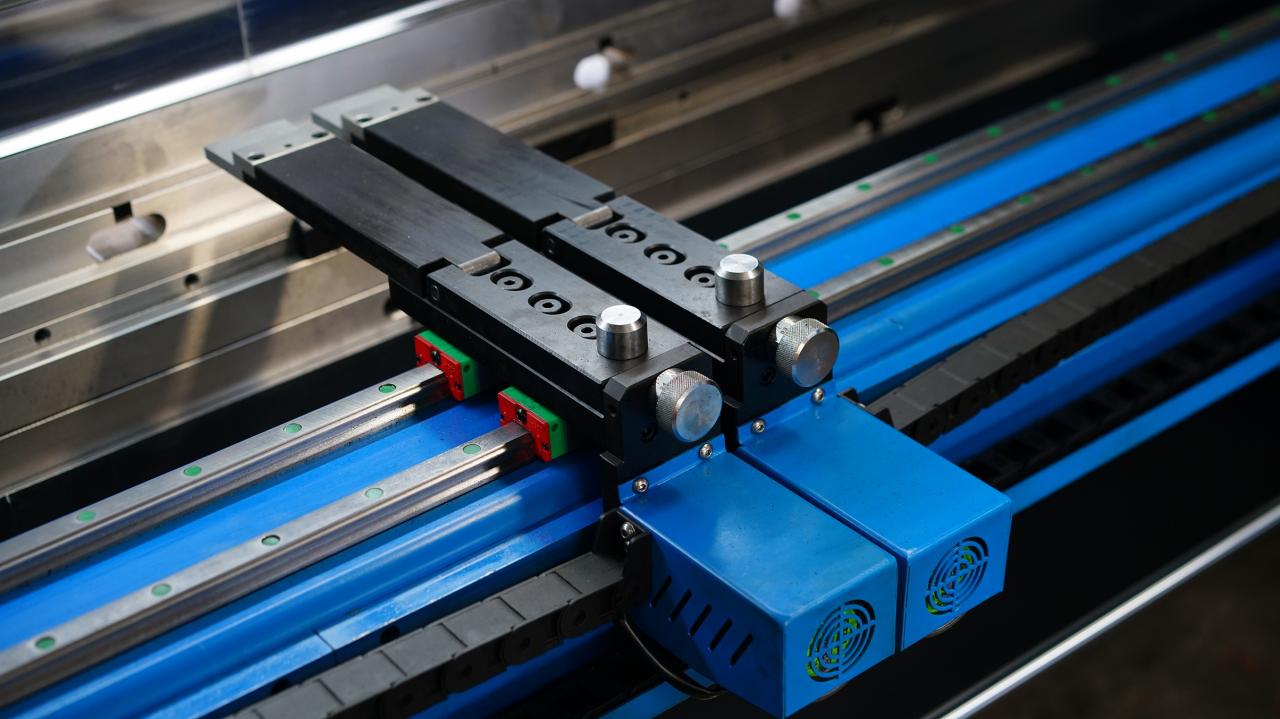

Rear retaining system
Moving the front supporting device

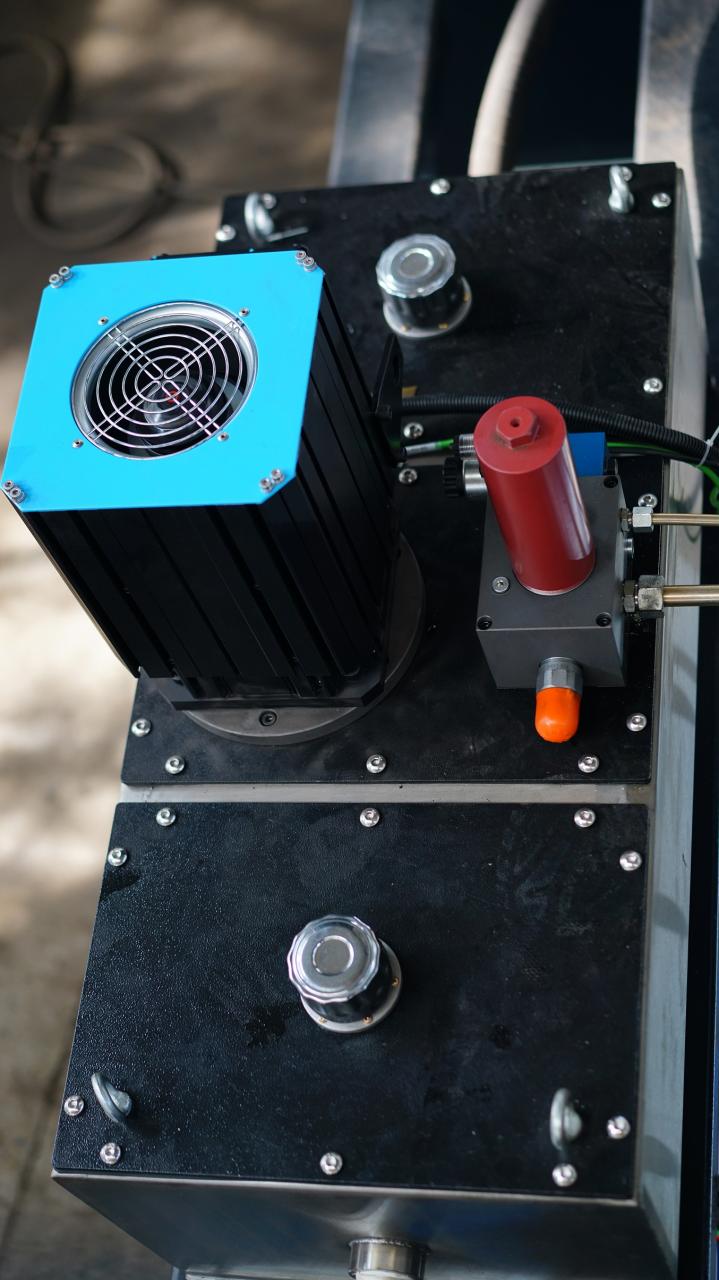

Servo Pump Control System Assembly

Back gauge manua l lifting

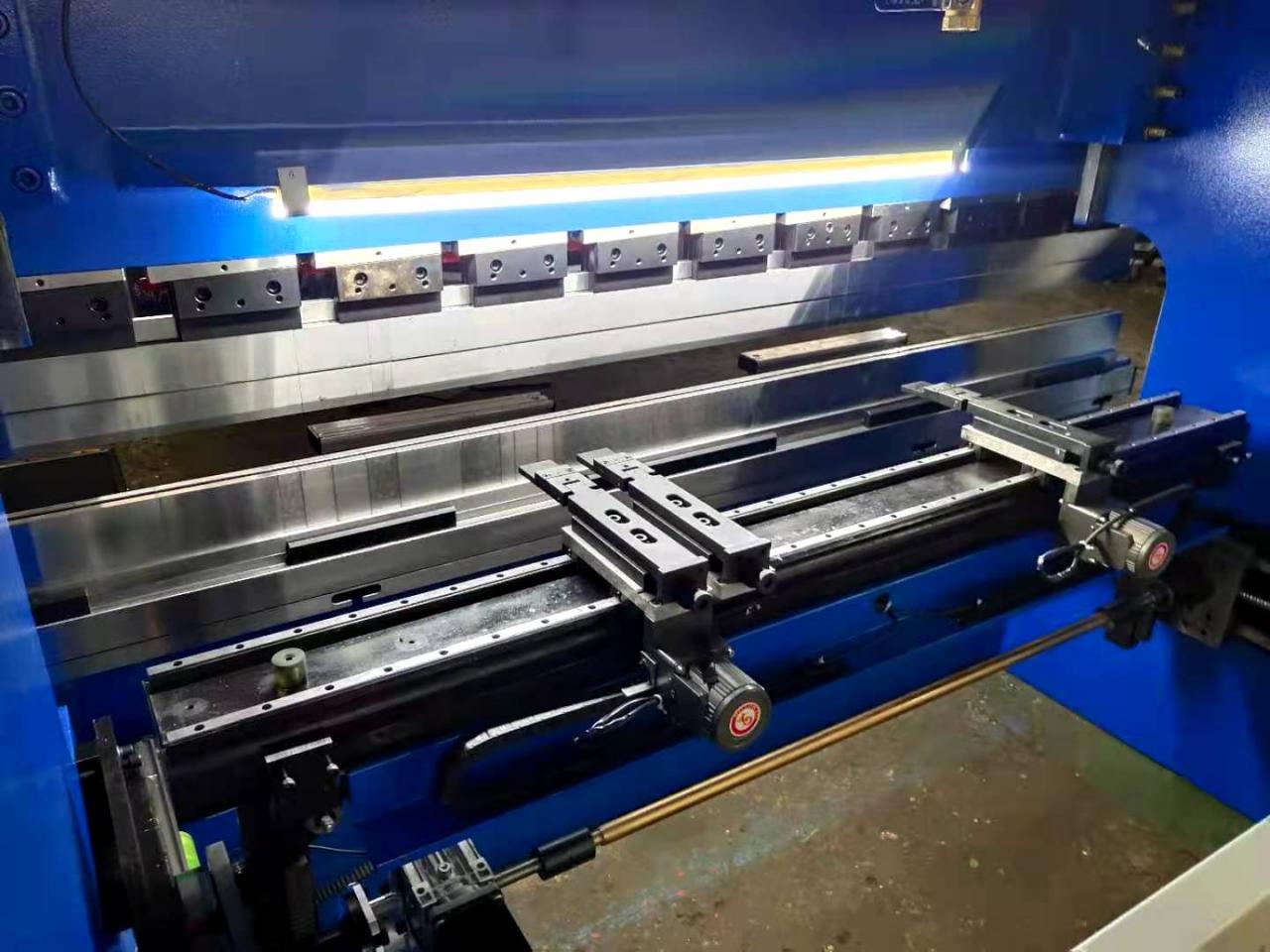

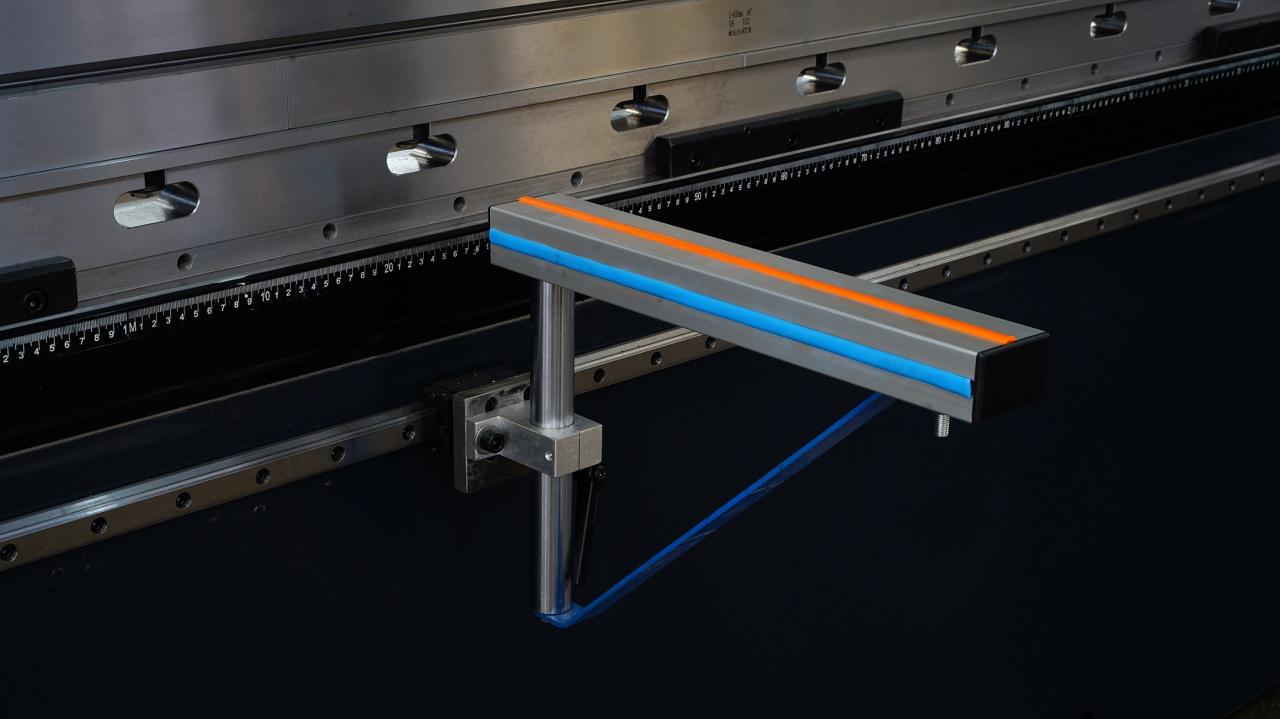

High accuracy stop fingers, double linear guide for easy moving
Synchronous wheel & belt provide back gauge moving accuracy
Contactor
Fan cooler (Optional)
Pressure gauge

EMB oil tube
provide long using life & no oil leakage

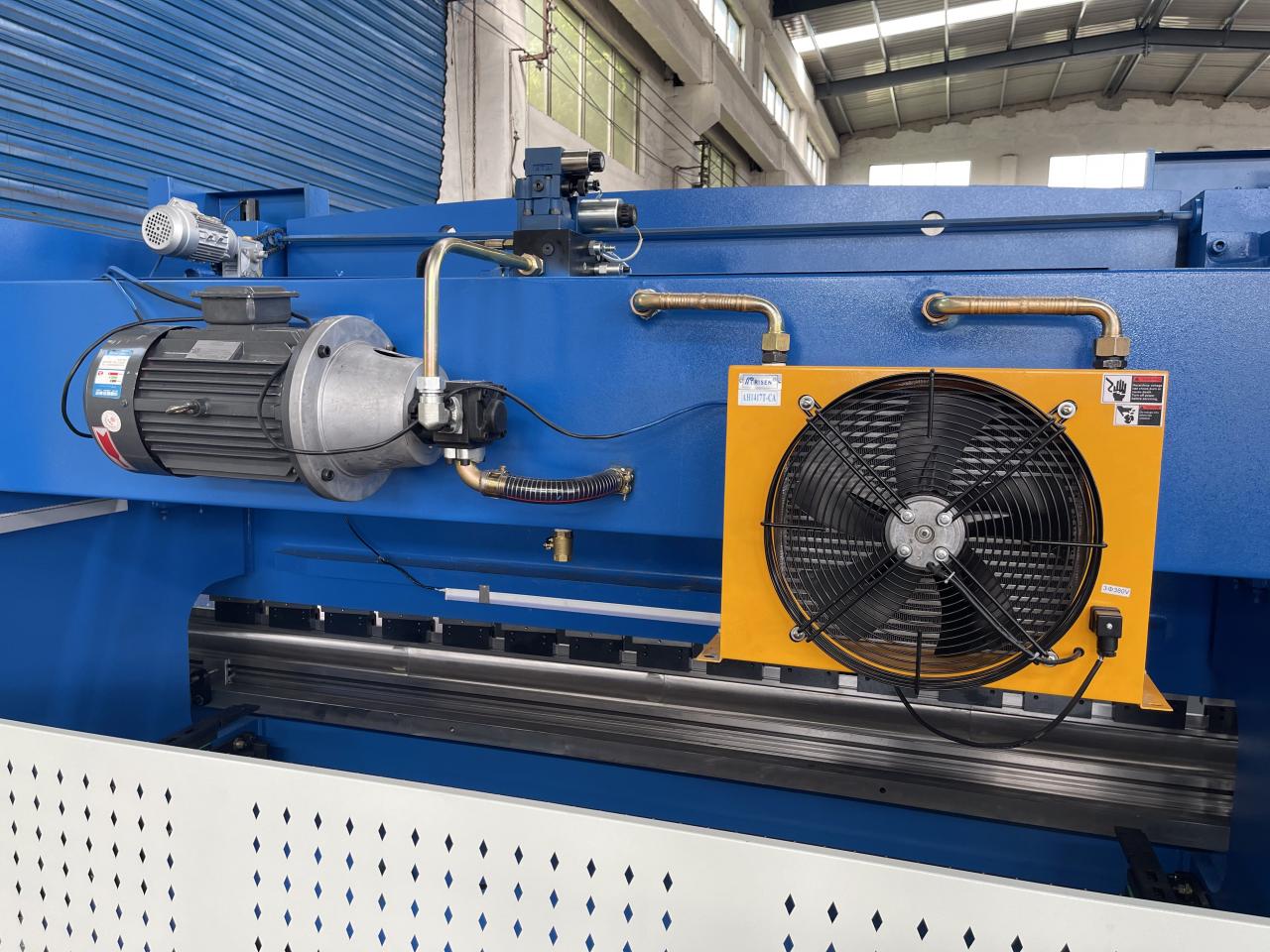

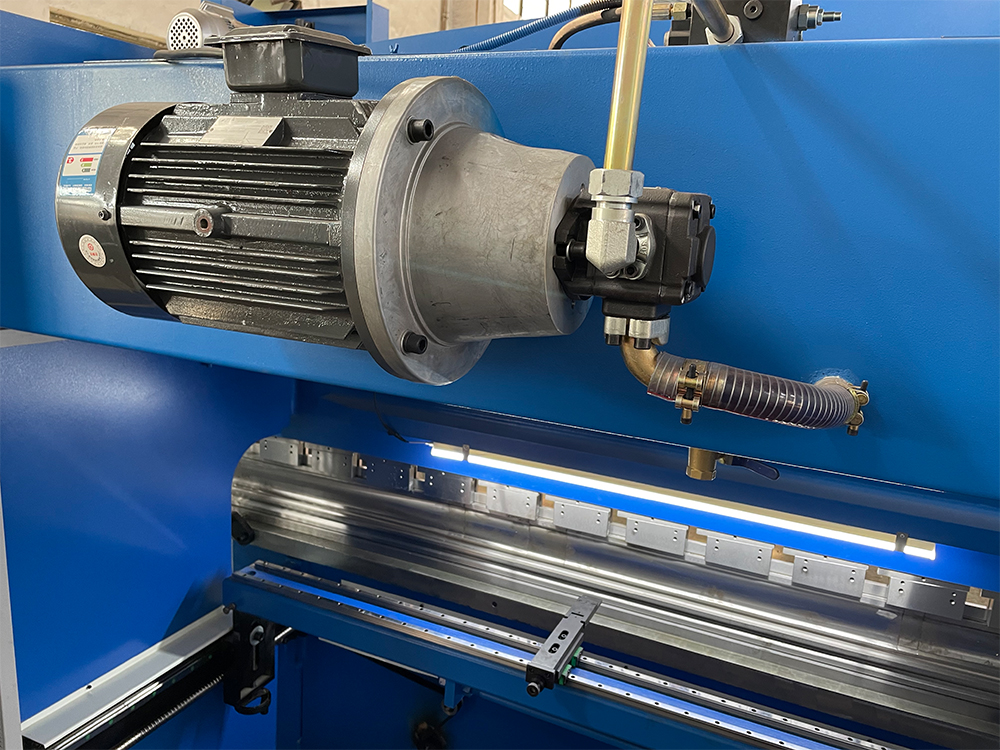

Siemens motor, low working noiselong using life

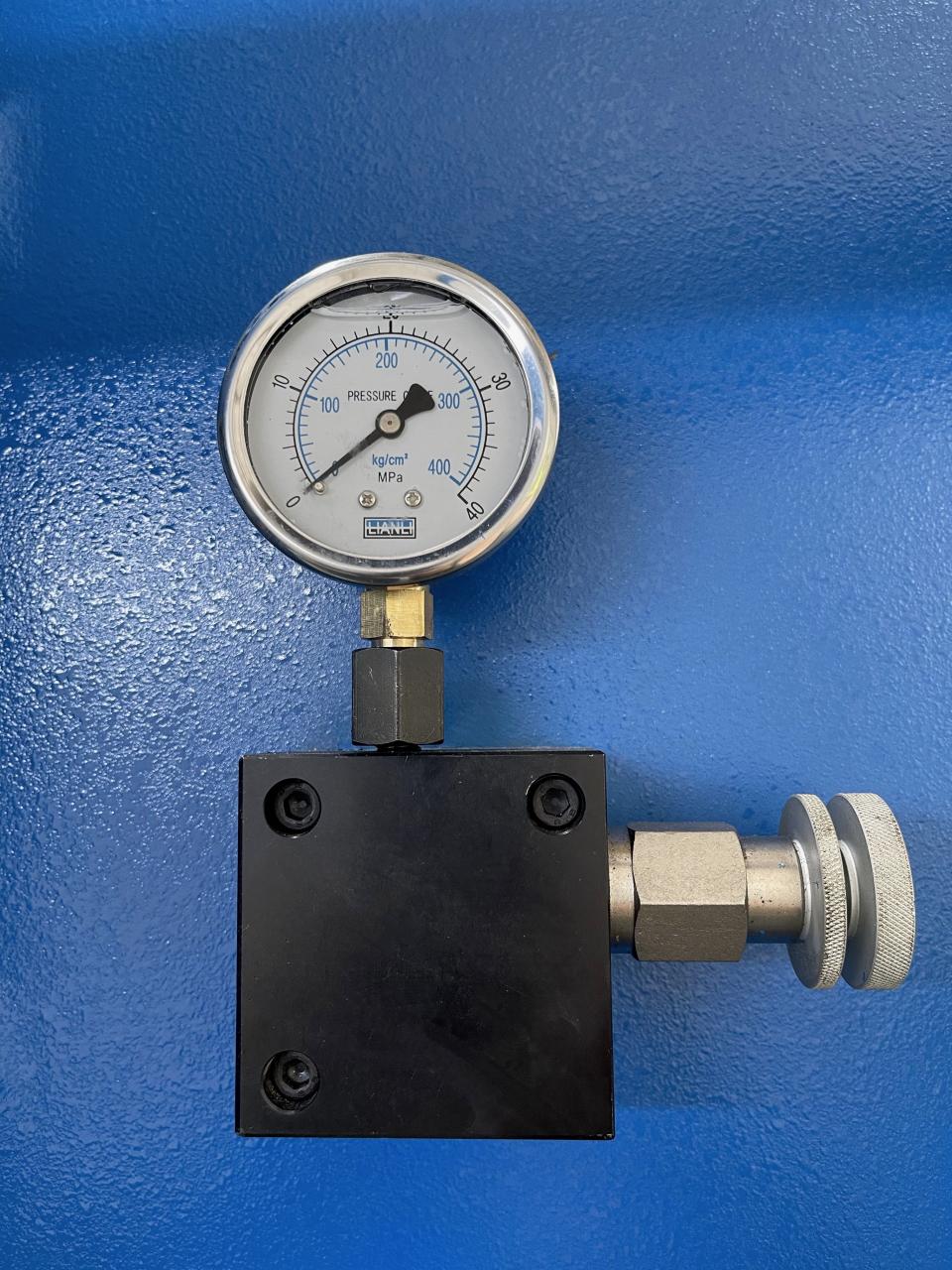

Bosch Rexroth valve low working noisegood performance

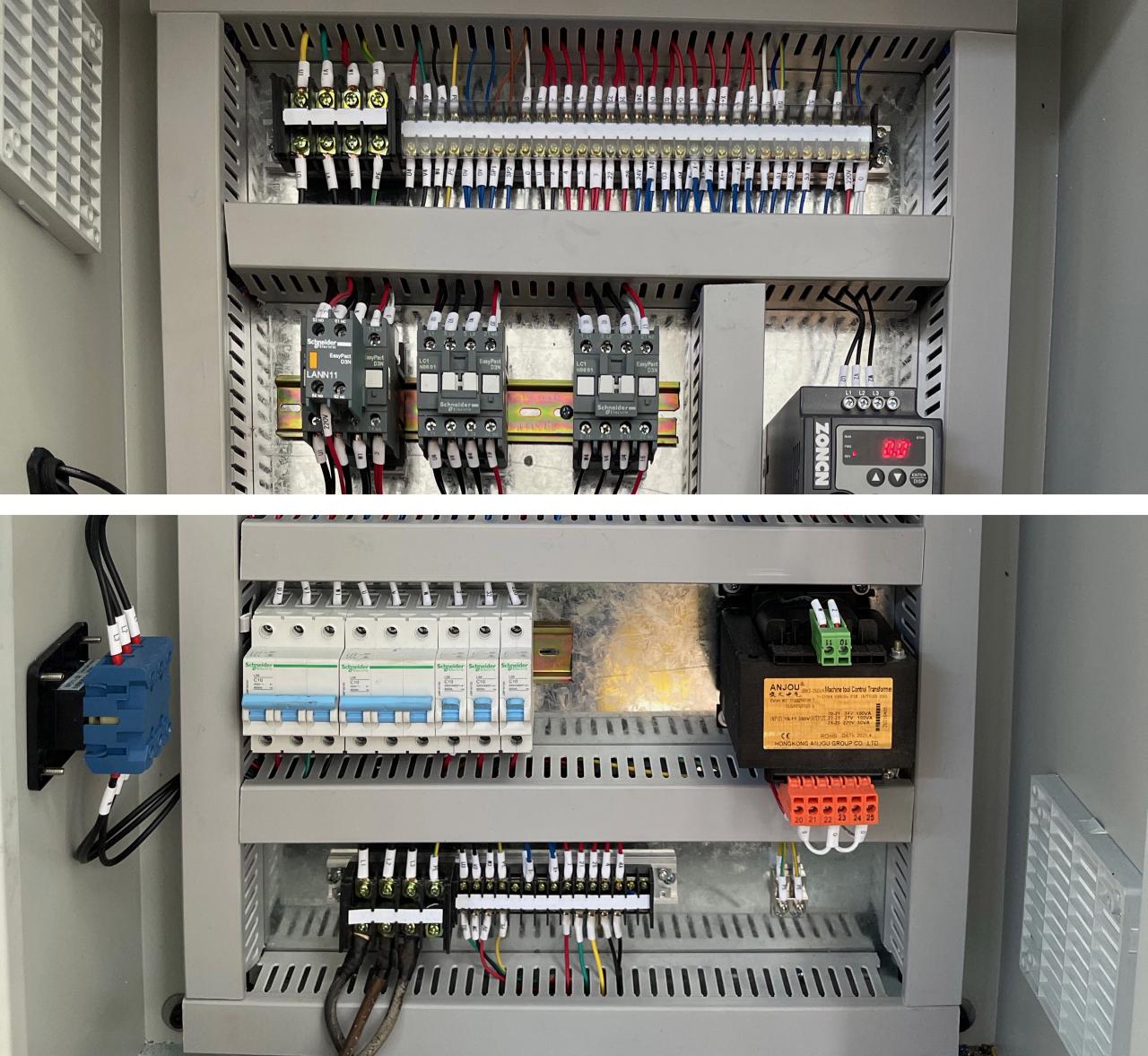

Electric cabinet with Schneider brand components

PRODUCT SPECIFICATIONS

Item	400T/4000	400T/5000	400T/6000
Nominal pressure	4000	4000	4000	KN
worktable length	4000	5000	6000	mm
Distance between holes	3000	4000	5000	mm
Throat depth	400	400	400	mm
Ram stroke	250	250	250	mm
Max.open height	590	590	590	mm
Main motor power	30	30	30	kw
Dimension(LWH)	420026004000	520026004100	620026004300	mm

Details

Slider Stroke (mm): 250 mm
Automatic Level: Fully Automatic
Throat Depth (mm): 400 mm
Machine Type: Synchronized
Length of Working Table (mm): 5000 mm
Width of Working Table (mm): 200 mm
Dimension: 5200*2600*4100mm
Condition: New
Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
Automation: Automatic
Extra Services: End Forming
Year: 2021
Weight (KG): 23000
Motor Power (kw): 30 kw
Key Selling Points: Sustainable
Warranty: 2 years
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Metal sheet processing
Showroom Location: None
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Product name: Hydraulic CNC Press Brake Machine
Control system: E21/DA41S/Cyb Touch8
Motor: SIEMENS BEIDE
Hydraulic System: Rexroth
Electrical components: Schneider
Seal Ring: NOKJapan
Ball screw/ Linear guide: HIWIN
Color: Customer Choose
Delivery: 15 days
Feature: High Performance
