Wc67k-63t/3200 Economical Type Hydraulic Delem Cnc Metal Sheet Bending Press Brake

Products Description

1. The whole machine is designed according to JB/T2257.2-92(China National standard) "plate bending machine technical conditions"and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing,use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.

2. The whole steel frame welded structure, made the press brake thick, high rigidity, strong shock anti-knock.

3. Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);

4. Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;

5. Rear material adopt the average silk pole and precise ball two kind silk poles;

6. Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.

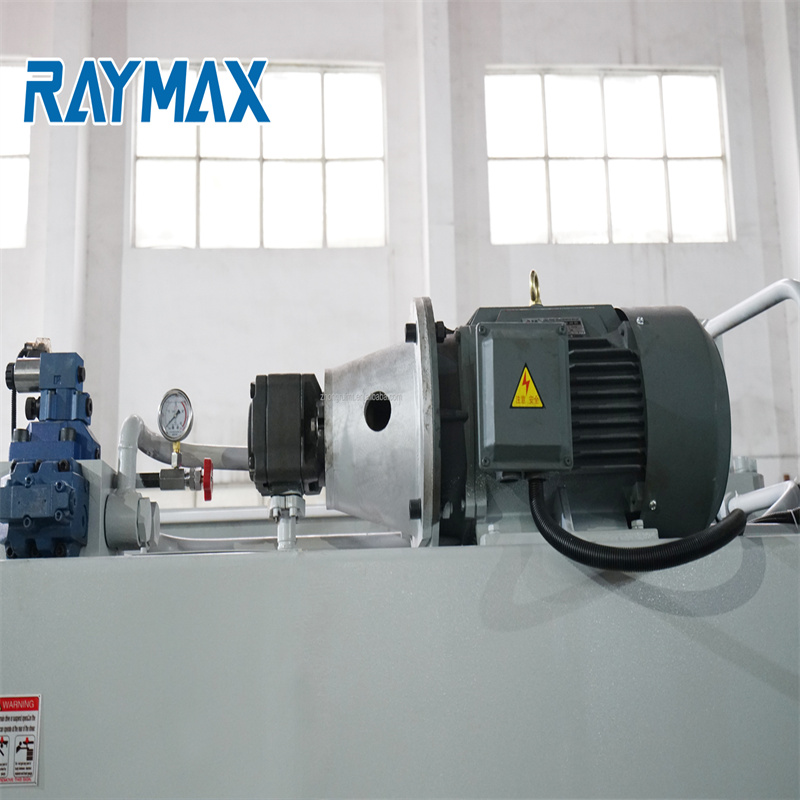

7. Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision.

Type	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Stroke	Max Open	Pover	Dimension
	(KN)	（mm)	（mm)	（mm)	（mm)	（mm)	(KW)	L*W*H(mm)
30T/1600	300	1600	1280	200	80	285	3	1600*1000*1600
35T/2000	350	2000	1480	200	80	285	4	2000*1100*1800
40T/2200	400	2200	1850	230	100	320	5.5	2200*1200*1910
40T/2500	400	2500	1850	230	100	320	5.5	2500*1200*1910
50T/2500	500	2500	1850	230	100	320	5.5	2500*1200*2000
63T/2500	630	2500	1900	250	120	320	5.5	2500*1300*2210
63T/3200	630	3200	2500	250	120	320	5.5	3200*1300*2210
80T/2500	800	2500	1900	300	120	320	7.5	2500*1400*2300
80T/3200	800	3200	2500	320	120	350	7.5	3200*1500*2300
80T/4000	800	4000	3000	320	120	350	7.5	4000*1500*2400
100T/2500	1000	2500	1900	320	160	320	7.5	2500*1600*2400
100T/3200	1000	3200	2500	320	160	370	7.5	3200*1600*2600
100T/4000	1000	4000	3000	320	160	370	7.5	4000*1600*2700
125T/3200	1250	3200	2500	320	160	370	7.5	3200*1600*2700
125T/4000	1250	4000	3000	320	160	370	7.5	4000*1600*2700
160T/3200	1600	3200	2500	320	200	460	11	3200*1700*2700
160T/4000	1600	4000	3000	320	200	460	11	4000*1700*2800
160T/5000	1600	5000	4000	320	200	460	11	5000*1900*3100
160T/6000	1600	6000	4940	320	200	460	11	6000*1900*3200
200T/3200	2000	3200	2500	320	200	460	11	3200*1950*2800
200T/4000	2000	4000	3000	320	200	460	11	4000*1950*2800
200T/5000	2000	5000	4000	320	200	460	11	5000*1950*3000
200T/6000	2000	6000	5000	320	200	460	11	6000*1950*3300
250T/3200	2500	3200	2500	400	250	460	18.5	3200*2000*3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000*2000*3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000*2000*3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000*2000*3400
300T/5000	3000	5000	4000	400	250	570	22	5100*2600*4000
300T/6000	3000	6000	5000	400	250	570	22	6100*2600*4200
300T/7000	3000	7000	5620	400	250	570	22	7100*2600*4400
320T/7000	3200	7000	5620	400	250	570	22	7100*2600*4400
350T/6000	3500	6000	5100	450	250	570	30	6100*2600*4200
350T/7000	3500	7000	5620	450	250	570	30	7100*2500*4500
400T/4000	4000	4000	3100	350	300	620	30	4100*2700*3800
400T/6000	4000	6000	4820	400	320	620	30	6100*2800*4200
400T/6500	4000	6500	5100	400	320	620	30	6600*2800*4300
500T/5000	5000	5000	4100	400	320	620	37	5100*3000*4400
500T/6000	5000	6000	4820	400	320	620	37	6100*3000*4700
500T/7000	5000	7000	5620	400	320	620	37	7100*3000*4900
600T/6000	6000	6000	4820	400	320	620	45	6100*2965*4900
600T/7000	6000	7000	5620	400	320	620	45	7100*2965*4700

FAQ

1: How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

4: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

Details

• Slider Stroke (mm): 120 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 250 mm
• Machine Type: Torsion Bar
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 160 mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Year: new
• Weight (KG): 2600
• Motor Power (kw): 5.5 kw
• Key Selling Points: Competitive Price
• Warranty: 1 Year
• Applicable Industries: Machinery Repair Shops, Manufacturing Plant
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor, PLC
• Raw Material: Sheet
• Name: Hydraulic Press Brake
• Product name: Hydraulic Cnc Bending Machine
• Usage: Metal Sheet Bending
• Type: Hydraulic Bending Tools
• Application: Stainless Plate Bending
• Keyword: Hydraulic Press Break
• Function: Steel Metal Bending
• Material: Stainess Steel
• CNC or not: CNC Bender Machine
• Certification: ce
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
