Wc67y Series Hydraulic Press Brake And Bending Machine

Product Application

Press brake can be divided into manual press brake, hydraulic press brake. Manual press brake is divided into mechanical manual press brake and electric manual press brake, hydraulic press brake by synchronously and can be divided into: torsion axis press brake, electric-hydraulicpress brake.Hydraulic press brake according to the movement mode and can be divided into: down moving and up moving type

Type	Nominal Pressure (KN)	Length of Table (mm)	Distance between Housings (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor(KW)
WC67Y-63/2500	630	2500	2050	250	100	335	5.5
WC67Y-63/3200	630	3200	2670	250	100	335	5.5
WC67Y-63/4000	630	4000	3300	250	100	350	5.5
WC67Y-80/2500	800	2500	2050	250	100	335	7.5
WC67Y-80/3200	800	3200	2660	250	100	335	7.5
WC67Y-100/2500	1000	2500	1950	320	140	385	7.5
WC67Y-100/3200	1000	3200	2650	320	140	385	7.5
WC67Y-100/3600	1000	3600	3000	320	140	385	7.5
WC67Y-100/3600	1000	4000	3200	320	140	385	7.5

Main Features

1) The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology,high strength and good rigidity og machine.

2) Double hydraulic oil cylinder is applied for upper transmission, prouded with, mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation, as well as high precision.

3) Electrical cintrol and manual fine-tuning, mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital diaplay device,easy and quick in use.

4) Upper dies is fitted with deflection compensation device.

Siemens motor

Servo motor can make the control speed, position accuracy is very accurate, the voltage signal can be converted into torque and speed to drive the control object.Siemens servo system can achieve excellent dynamic positioning and accurate motion control sequence, and rich Siemens servo motor products compact structure, can achieve excellent dynamic characteristics and operational efficiency

Hydraulic System

Hydrostatic transmission or transmission is a hydraulic mechanical system that USES the hydraulic pressure of a pressurized system to power a fluid

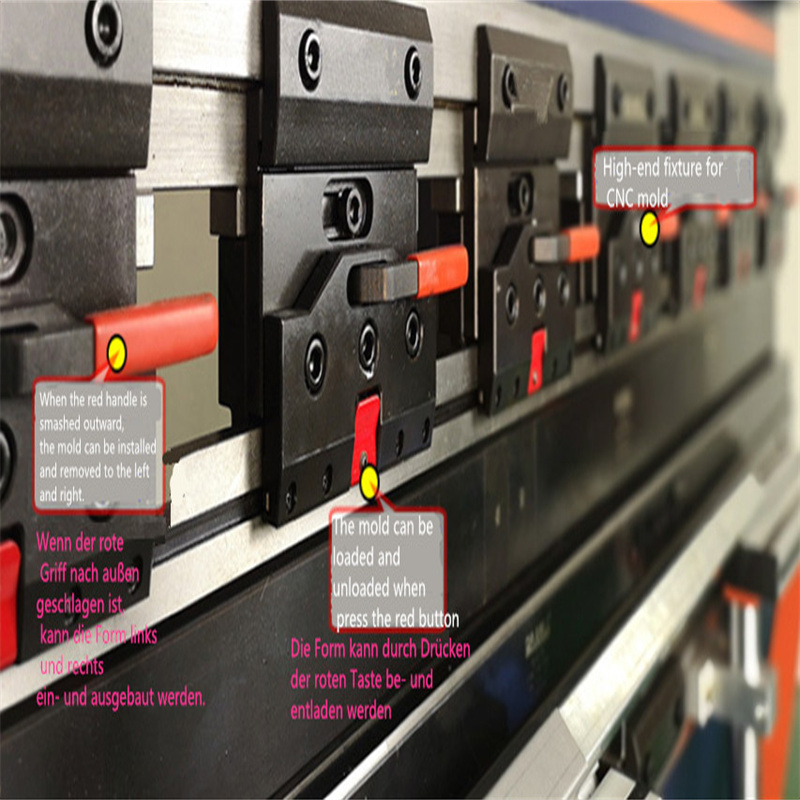

Mechanical Clamps

Upper die is a kind of machanical hook-type clampings, higher safety when exchanging dies.

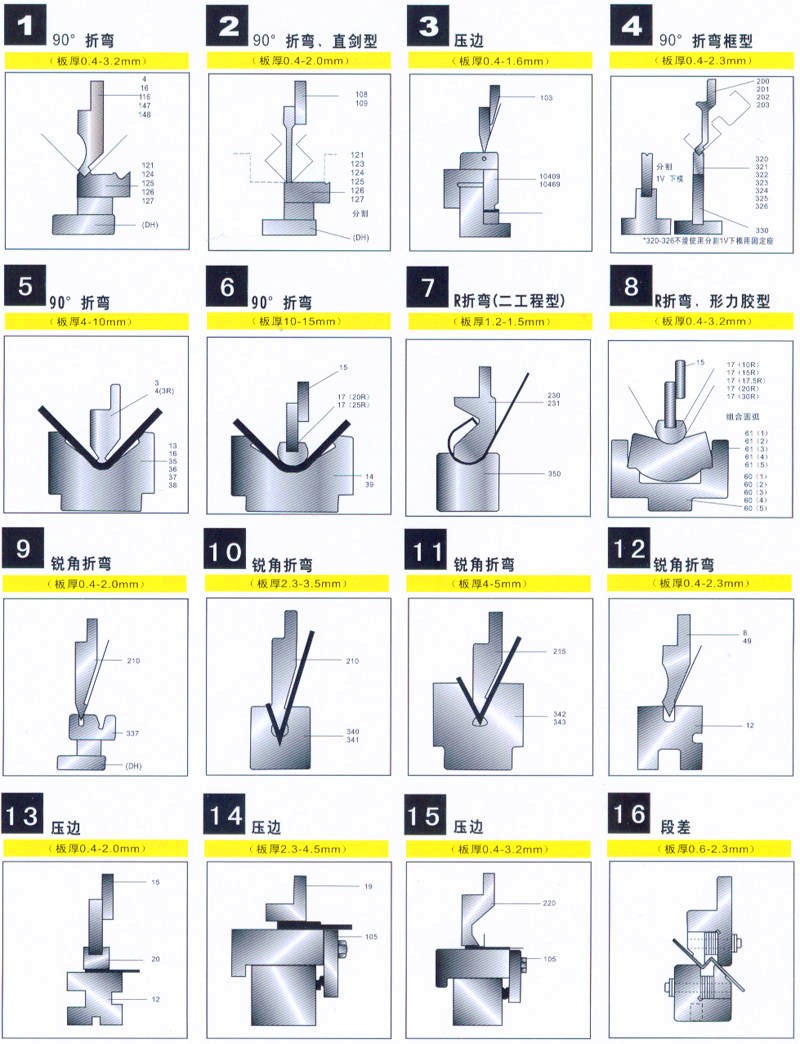

Mould

1.The mould is made of high toughness material with good strength, toughness and wear resistance.
2. mold material of the bending machine is 42CrMo, which is an alloy with high strength and quenched and tempered steel

Our Service

Pre-Sales Service

* Technical solution
* Online video authentication machine work.
* Cutting samples provided by Business express

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training

Details

• Slider Stroke (mm): 320 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 450 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2000
• Width of Working Table (mm): 3200 mm
• Dimension: 2000*1000*1500
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
• Automation: Automatic
• Extra Services: Cut To Length
• Year: 2019
• Weight (KG): 10
• Motor Power (kw): 17.5 kw
• Key Selling Points: Competitive Price
• Warranty: 2 years, 12months
• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
• Showroom Location: United States, Pakistan, Malaysia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Bearing, Motor, Pump, PLC, Pressure vessel
• Power: CNC
• Name: Hydraulic Press Brake
• Type: Hydraulic Bending Tools
• Application: Stainless Plate Bending
• Voltage: 220V/380V/415V/440V/customized
• Usage: Metal Sheet Bending
• Function: High Efficiency
• Bending Capacity: 100 Tons
• Color: Customized
• Nominal Pressure (kN): 2000
• Certification: ce
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
