Wc67y / Wc67k Normal Cnc Hydraulic Press Brake

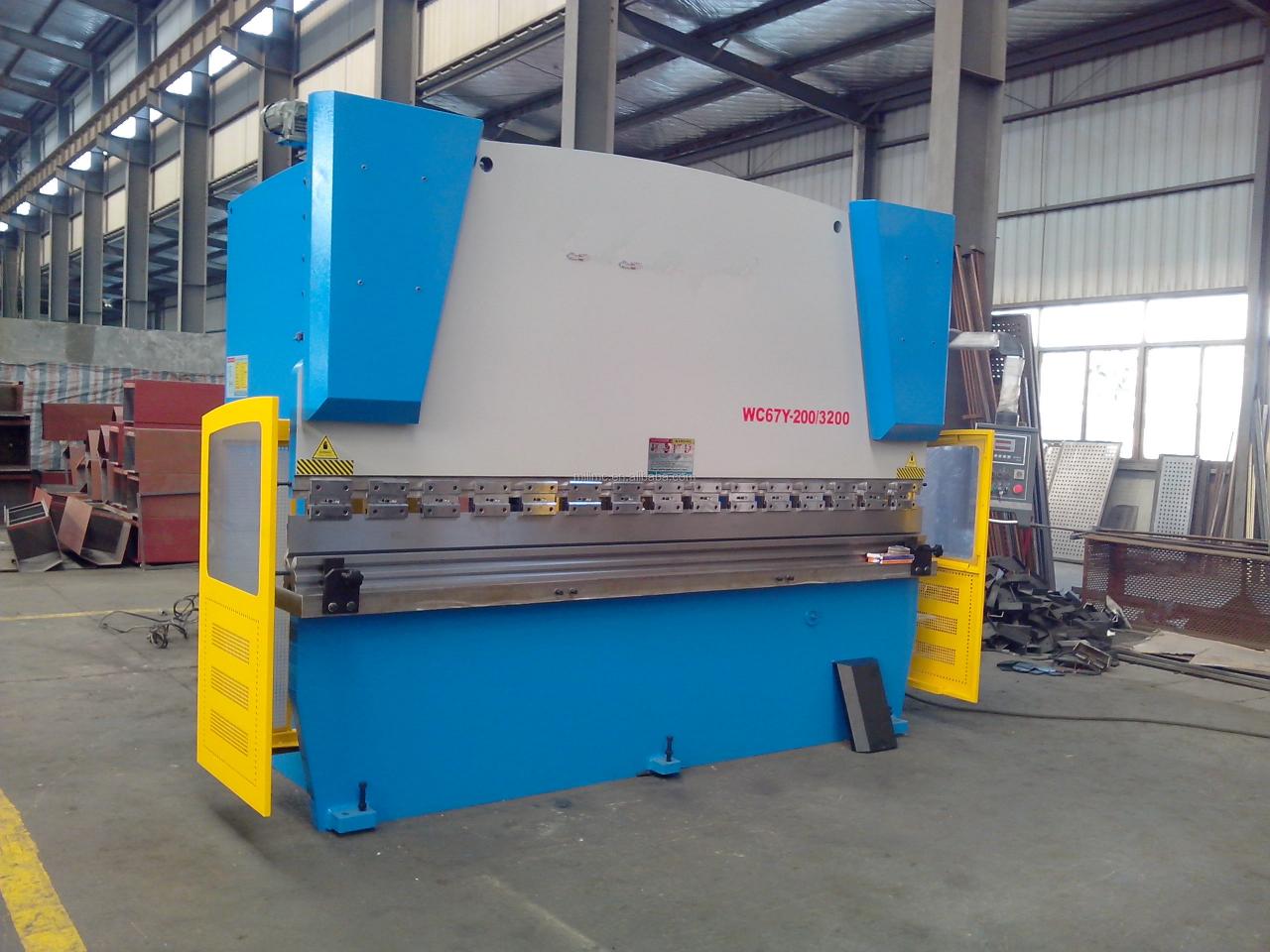

WC67Y CNC Hydraulic Press Brake：

1. The Frame is entirely welded with steel plates, and treated to relive stress by tempering, so the precision is well maintained.

2. Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from over seas to ensure the
machine tool relia bility.

3. Mechanical synchronous mechanism and the complex compen-station are designed so as to reise the workpieces precision. (the convex structure for the table above 160T)

4. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.

5. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safely.

WC67K CNC Hydraulic Press Brake：

1. The Main machine adopts the structure of WC67Y series hydraulic press brake.

2. CNC System for press brake adopt delem system.

3. The motor of back gauge and stroke-adjusting can be equipped with importing AC servo motor.

4. The screw of back gauge adopts importing ball screw with linear guideway.

5. User can choose other brand CNC system (option)

Product Description

Our Advantages

Products Advantages:

Our company has over 10 years producing history, with professional technical team and quality control team. Our factory has 5 work shops with over 300 sets all kinds of machines, and has over 300 workers.Production process is strictly in accordance with the production process, ensure that each machine is qualified before delivery.

Service advantages:

Pre-sale service:

1. Provide Lathes technical consulting services to customers free of charge.

2. Provide the company with the company profile and credit certificate.

3. Invite customers to visit our company to inspect the manufacturing process.

In Producing service

Customers can come to our company to know the progress of production at any time.

After-sale service

1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements.

2. Customers can send employees to our company for acceptance and training.

3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements.

4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.

FAQ

Q1. How can I get a quotation?

A1. Leave us massage with your purchase requements and we will reply you ASAP.

Q2. Can you provide customized machine or SPM (Special purpose machine)?

A2. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?

A3. Yes, free training in our factory is available.

Q4. What's your warranty terms?

A4.We will supply a replacement for parts that prove to be defective for a period of one year.Extended warranty is available at the time of purchase.

Q5. What’s the delivery time, and what’s the package?

A5. Normally the delivery time is about 30-45 days. All our CNC machines are packed with PLYWOOD package.

Details

• Slider Stroke (mm): 600 mm mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 1200 mm mm
• Machine Type: Torsion Bar
• Length of Working Table (mm): 12000
• Width of Working Table (mm): 9000 mm mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
• Weight (KG): 10000
• Motor Power (kw): 75 kw
• Key Selling Points: Competitive Price
• Warranty: 1 Year
• Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
• Showroom Location: None
• Warranty of core components: 1 Year
• Core Components: Motor, PLC, Pressure vessel
• Name: Hydraulic Press Brake
• Color: Customized
• Material: Aluminum Steel stainless steel
• Control: Serve
• Function: Plate Bending
• Voltage: 220V/380V/415V/440V/customized
• Motor: 75KW
• Processing material: Steel Alimunum alloy
• Nominal Pressure (kN): 25000
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: None","attrValueId":3270618}
